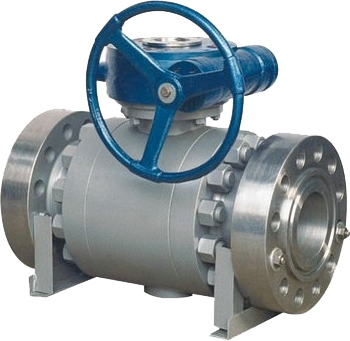

Anti-abrasive Ball Valve
Anti-abrasive Ball Valve

Anti-abrasive Ball Valve

Design Standards: API 6D, API6FA, ASME B16.34, etc.
Size Range: NPS2~NPS24, DN50~DN600
Nominal Pressure: CLASS150~CLASS2500
Connection: RF, RTJ, BW, etc.
Materials: ASTM A105, ASTM A216 WCB, ASTM A352 LCB, ASTM A350 LF2, ASTM A351 CF8, ASTM A182 F304, ASTM A351 CF8M, ASTM A182 F316, A995 4A, etc.
Applicable Temperature: -29℃~425℃
Applicable Medium: Water, Oil, Gas, etc.
Operation: Lever, Gear, Pneumatic, Electric, Hydraulic, etc.

description

Product Features:

1.Super Abrasion Resistance: The anti-abrasive ball valve adopts special alloy ball and seat material with high hardness and high abrasion resistance, which can maintain good sealing and durability for a long time even under the working condition of conveying solid particles or high abrasion medium, significantly reducing the maintenance frequency caused by abrasion.

2.Long Service Life Design: By optimizing material selection and structural design, the anti-abrasion ball valve effectively extends the service life, reduces the frequency of replacement, and lowers the long-term operating costs for customers.

3.Self-cleaning Flow tunnel : The unique flow tunnel design allows the medium to effectively flush away possible deposited particles when passing through, reducing the risk of blockage and maintaining the long-term smooth flow of the valve.

4.Wide Applicability: Anti-abrasion ball valve is suitable for a variety of harsh working conditions, including high temperature, high pressure, high abrasion medium, etc.,which can meet the needs of petroleum, chemical, metallurgy, mining and other industrial fields.

5.Easy Maintenance: Despite its excellent wear resistance, the anti-wear ball valve still retains a convenient maintenance design, such as a removable bonnet and easily replaceable sealing parts, reducing the maintenance difficulty and cost.

6.Double Direction Sealing Guarantee: The double direction sealing structure can provide reliable sealing performance even after the seal is worn, ensuring safe and stable operation of the system.

7.Stable and Reliable: The anti-abrasion ball valve has a reasonable structural design and rigorous material selection to ensure stable operation under various complex working conditions and reduce the failure rate.

8.Standardized Top Flange Connection: The valve is designed according to international standards, such as ISO 5211, etc., which is easy to connect with various actuation devices and control systems to achieve automatic control.
